Why the Japanese 25mm Model 96 AA Guns Struggled to Hit Allied Planes During WWII

During the Second World War, the Imperial Japanese Navy relied heavily on the 25 mm Model 96 automatic cannon as its primary defense against low-flying Allied aircraft. Mounted on battleships, carriers, cruisers, and even submarines, this weapon was meant to create a protective wall of fire around the fleet. Yet wartime records and Allied intelligence reports reveal that the Model 96 rarely lived up to expectations. Despite being the most common medium-caliber anti-aircraft gun in Japanese service, it proved far less effective than planners hoped.

Design and Operation

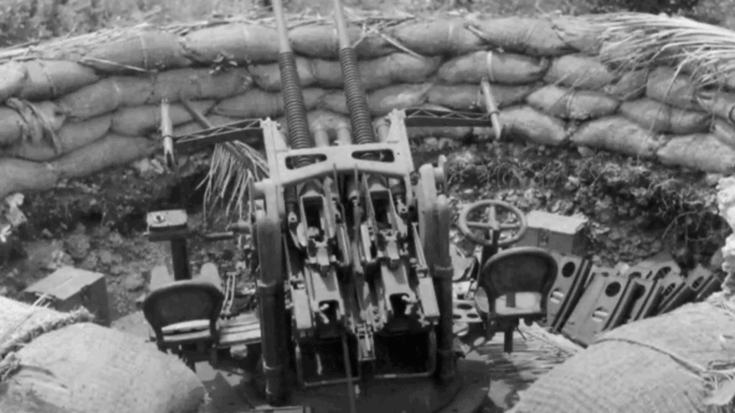

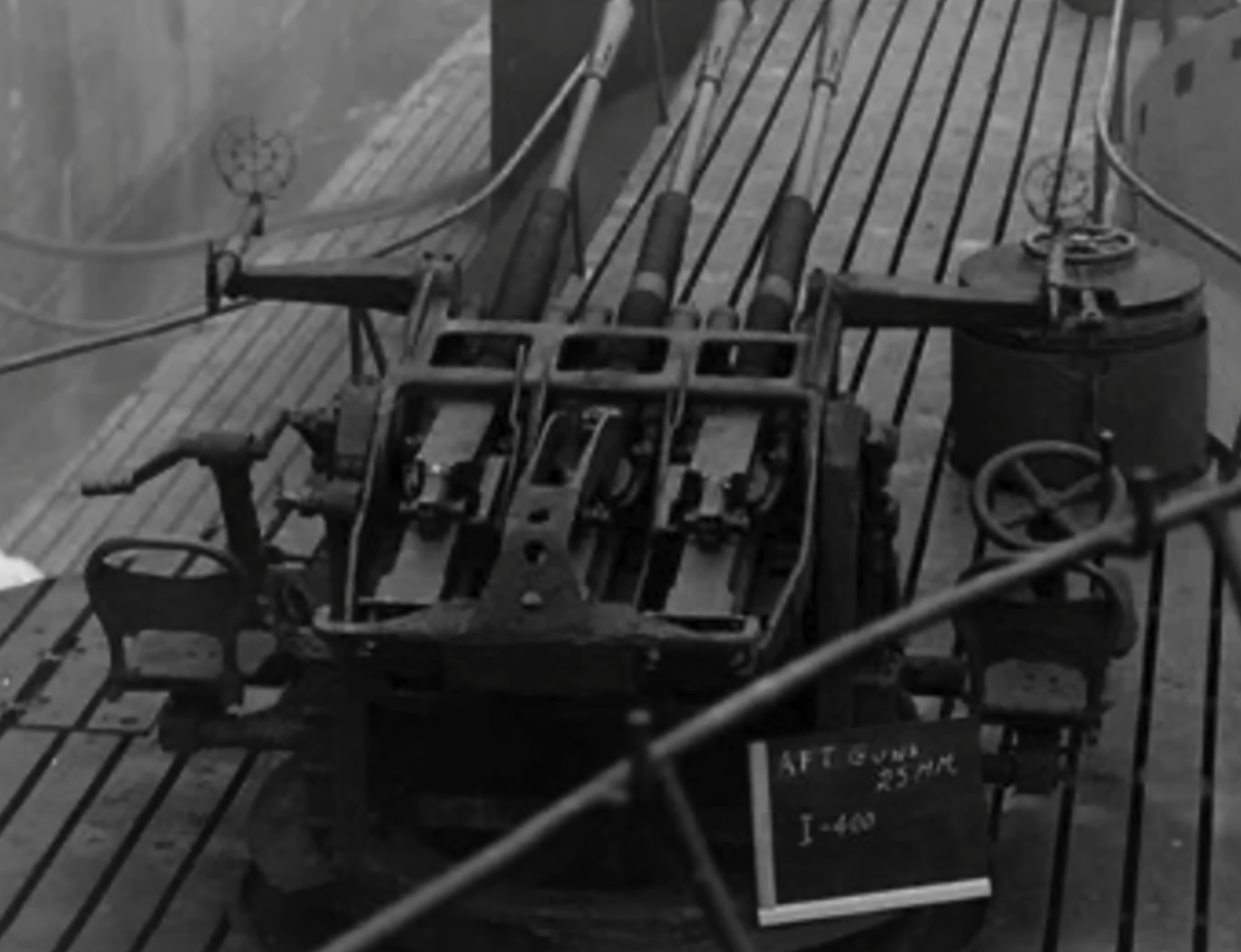

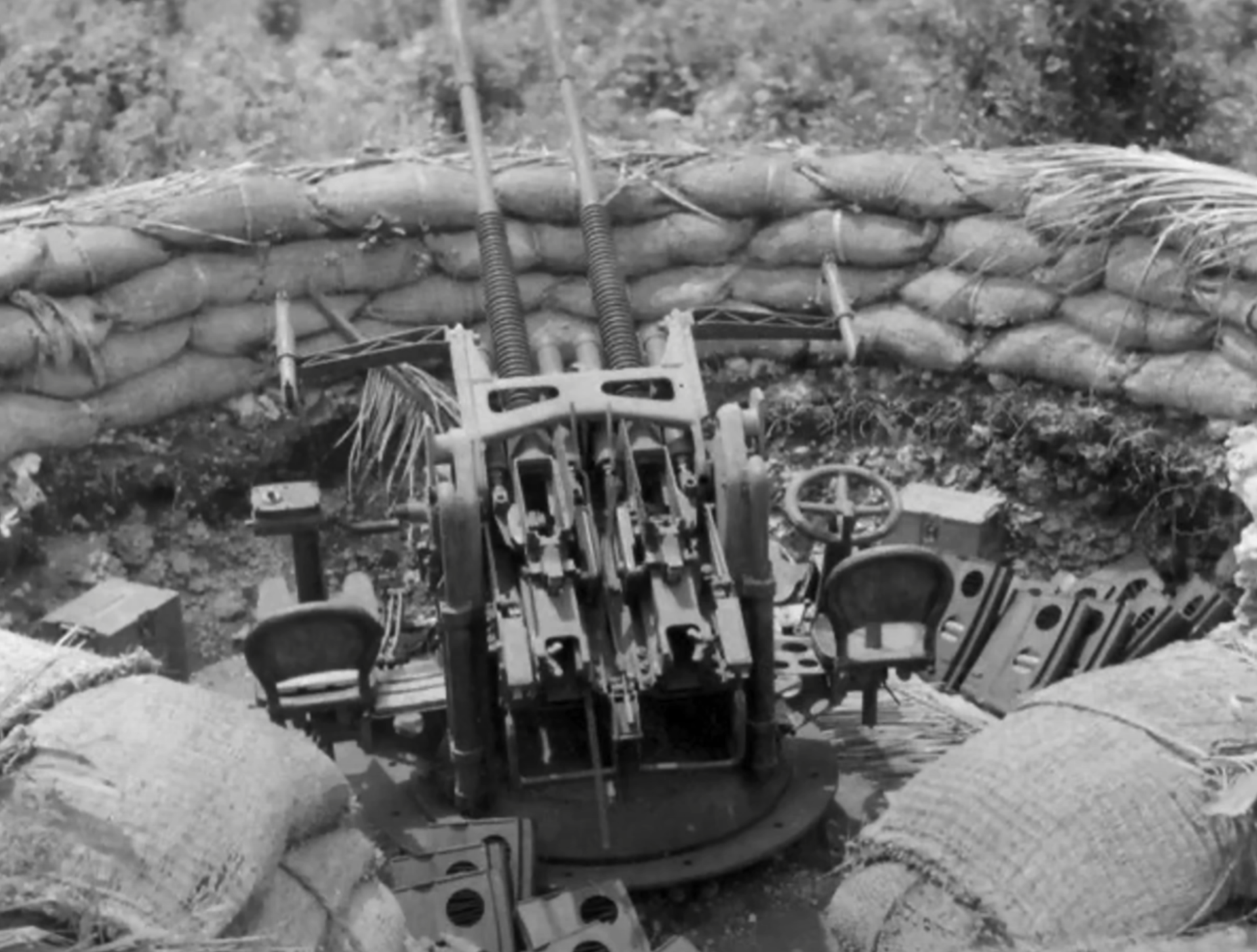

The Model 96 was based on a 1930s French Hotchkiss design and entered Japanese production in the mid-1930s. Each barrel fired a 25 mm projectile weighing about six pounds at a muzzle velocity near 2,850 feet per second, roughly Mach 2.6. Guns were mounted singly or grouped in twin and triple arrangements. A single mount weighed about 400 pounds, while a triple mount approached 4,000 pounds and required a crew of nine. The gun elevated from –10 to +85 degrees and traversed horizontally by manual wheel at roughly 13 degrees per second.

Crewmen worked in pairs: one gunner handled elevation and fired the weapon with foot pedals, while another turned the traverse wheel to follow the target. Ammunition came in 15-round magazines, a limitation that forced constant reloading and slowed the practical rate of fire to around 110 rounds per minute, far below the theoretical 230. Targets were usually aimed through simple iron ring sights, although a few installations carried basic computing sights.

Limitations in Combat

Several weaknesses quickly became clear in action. The traverse speed of 13 degrees per second was about one-third that of the American 40 mm Bofors, making it hard to track fast, low-level aircraft. Every full turn of the gunner’s wheel shifted the barrels only five degrees, far too slow when facing a diving bomber or torpedo plane. The weapon vibrated heavily during firing, making it difficult to keep the sight on target and judge the correct lead.

The small magazine capacity further reduced effectiveness. Continuous firing required frequent magazine changes, each pause giving attacking planes precious seconds. Crews also had no protective armor except on a few capital ships, leaving them exposed to blast and strafing. Barrel life varied widely, and cooling often involved little more than wet rags draped over the hot metal.

Range and Effectiveness

Although the Model 96’s shells could travel thousands of feet, their effective striking range was much less. Allied intelligence documents from 1945 estimated a reliable slant range of about 4,500 feet, with accuracy falling sharply above 6,500 feet in altitude. A typical projectile carried only 9–19 grams of explosive filler, less than half the charge of a standard hand grenade, and detonated on contact rather than by timed fuse.

Japanese warships carried impressive numbers of these weapons—battleships often mounted 96 to 150 barrels and carriers close to the same—but quantity did not guarantee success. At the Battle of Midway, out of 144 Allied planes lost, only a handful were credited to shipboard anti-aircraft fire of all types. During the 1945 attack on the battleship Yamato and her escorts, 372 Model 96 barrels managed to bring down only about ten American aircraft while losing most of the Japanese force.

Legacy of a Flawed Defense

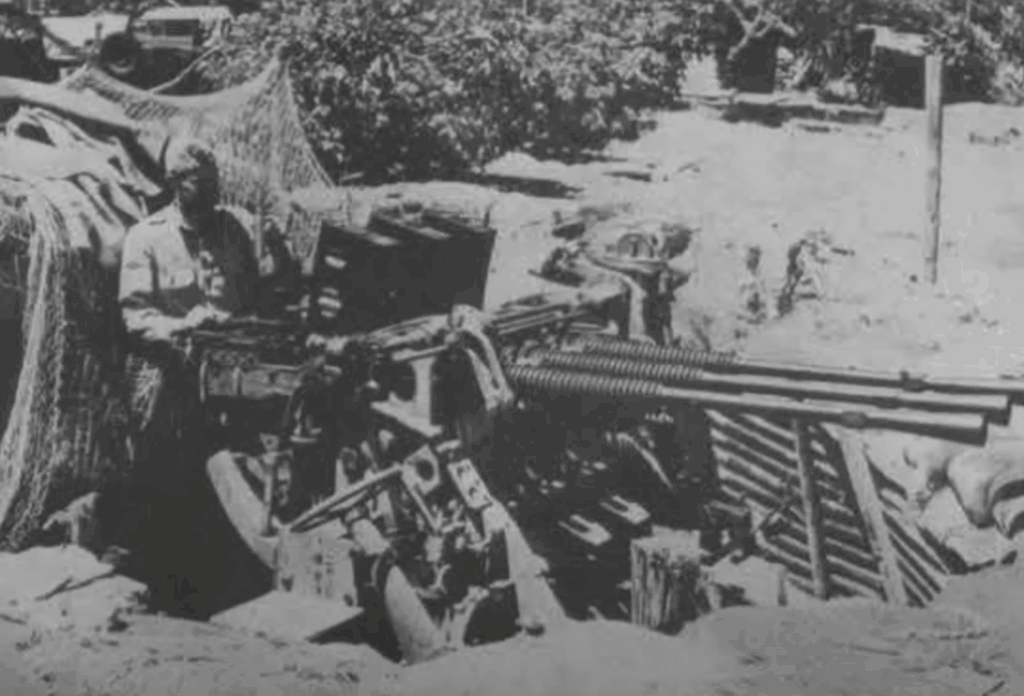

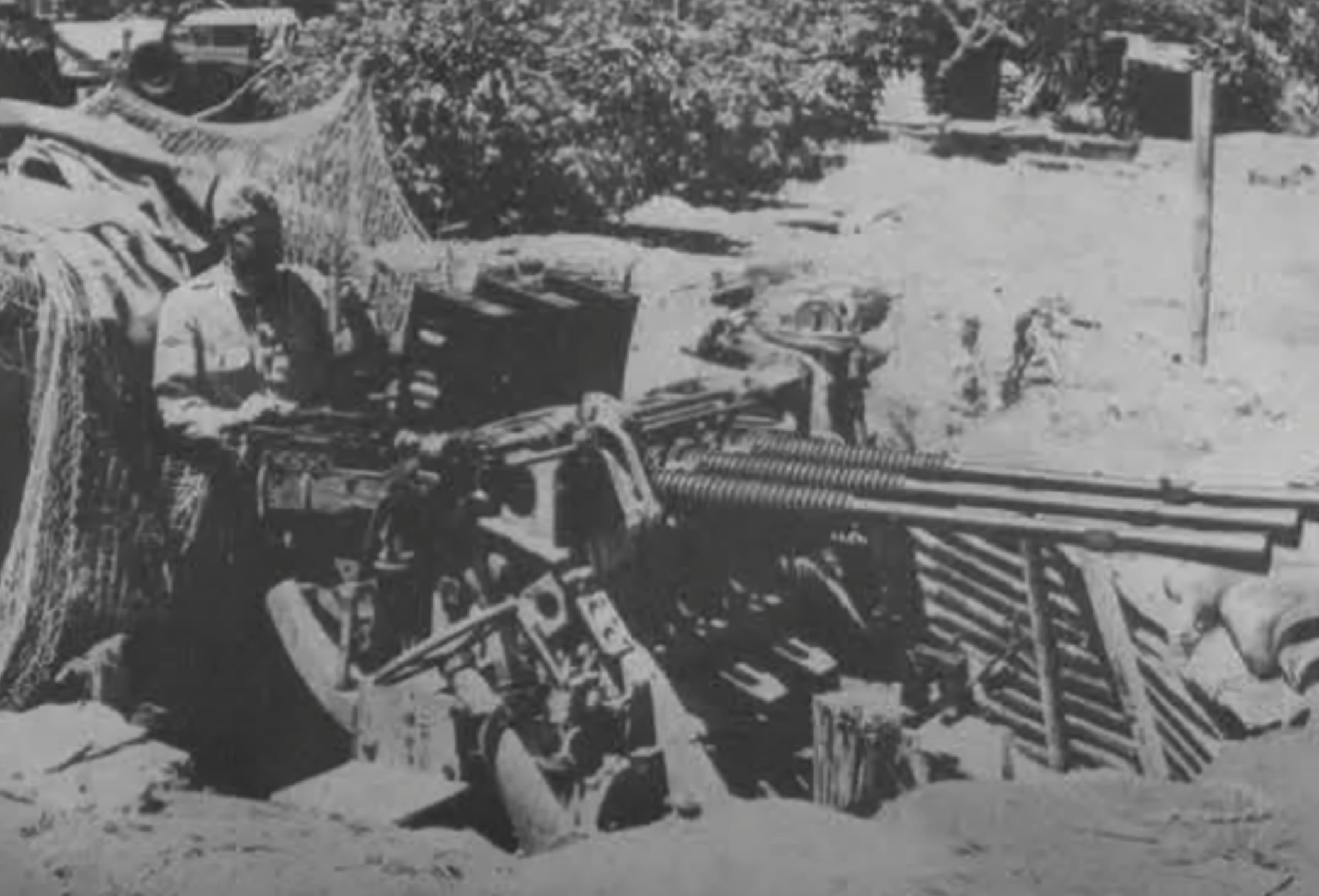

The Model 96 remained Japan’s main medium anti-aircraft gun until the war’s end, used on battleships, cruisers, destroyers, and merchant vessels alike. Crews learned to operate twin and triple mounts for better coverage, and the gun was praised internally for reliability and ease of production. Yet its slow tracking, small magazines, heavy vibration, and simple sights meant it rarely stopped determined Allied air attacks. Intelligence reports and combat records agree that these shortcomings left Japanese ships vulnerable, proving that sheer numbers could not overcome basic design limits.
